Learning gRPC

Victor Martinez

First, what is RPC?

It stands for Remote Procedure Calls.

An idea to extend transfer of control and transmission of data from one machine to another.

http://birrell.org/andrew/papers/ImplementingRPC.pdf

note:

The concept dates back to 1976 [1]

Building applications that required communicating with a separate machine was difficult and required big expertise

This RPC implementation aimed to make it highly efficient (network-wise) as well as as simple to use as non-remote procedures.

Make it more accessible to build distributed applications

They aimed to provide secure communications with RPC.

Things were shared in plain non secured text.

[1] WHITE, J. E. A high-level framework for network-based resource sharing. In Proc. National Computer Conference, (June 1976).

http://birrell.org/andrew/papers/ImplementingRPC.pdf

note:

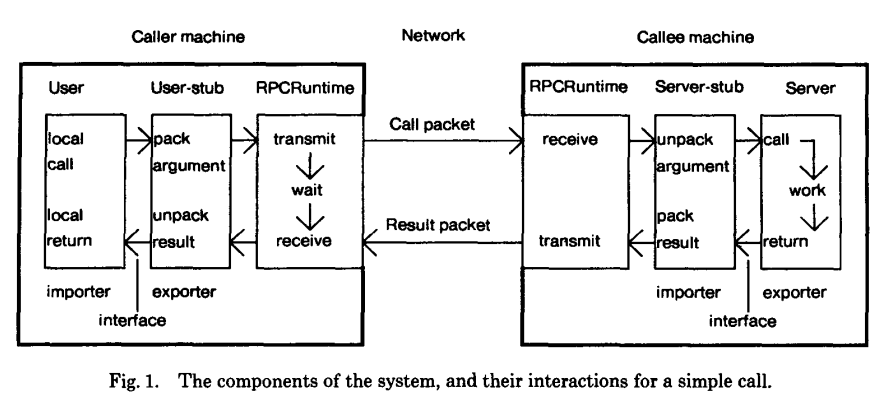

The program structure would be based in the concept of Stubs.

Five pieces of program are involved when making an RPC call:

User -> User-stub -> RPC communications package (known as RPCRuntime) -> server-stub -> the server.

They auto-generated the client and server stubs:

The user-stub and server-stub are automatically generated, by a program called Lupine.

Interface Definition Language

struct Phone {
  1: i32 id,
  2: string number,
}

service PhoneService {
  Phone findById(1: i32 id),
  list<Phone> findAll()
}

Codegen tools will generate gRPC stubs from IDL code

An example of Thrift, an IDL used in Facebook's RPC framework

https://github.com/facebook/fbthrift

note:

Many IDLs have been developed over time. Mozilla, Microsoft, IBM... and more developed their own internal RPC frameworks with their own IDLs [2]

In the paper mentioned above, they wrote the interface using the Mesa interface modules feature:

This generation is specified by use of Mesa interface modules. These are the basis of the Mesa (and Cedar) separate compilation and binding mechanism [9]. An interface module is mainly a list of procedure names, together with the types of their arguments and results

[2] https://en.wikipedia.org/wiki/Interface_description_language

gRPC is a modern open source high performance Remote Procedure Call (RPC) framework that can run in any environment.

https://grpc.io/

note:

google Remote procedure calls

"gRPC was initially created by Google, which has used a single general-purpose RPC infrastructure called Stubby to connect the large number of microservices running within and across its data centers. In March 2015, Google decided to build the next version of Stubby and make it open source. The result was gRPC"

Why a framework?

gRPC dictates how you will build your network interface.

Code is generated for you batteries included, you must only fill the gaps.

note:

All the underlying details about networking, encoding & more is handled for you.

It is more a framework in the sense of servers. They must use the generated Server Stub, with the only need of implementing the Service interfaces.

Clients will use the generated client Stub. For them the gRPC code will be less intrusive and will feel more like a library

Some implementations wrap the original C library, some don't.

Built on top of HTTP2

So we get for free

Multiplexing
Header compression
Server push
TLS

note:

Explain multiplexing and server push

4 types of RPC supported

note:

Explain that each of these RPC types can be specified on the protobuffers IDL

Metadata

Key-value pairs of data used to provide additional information about a call.

Implemented using HTTP/2 headers.

https://github.com/grpc/grpc/blob/master/doc/PROTOCOL-HTTP2.md

note:

gRPC metadata can be sent and received by both the client and the server. Headers are sent from the client to the server before the initial request and from the server to the client before the initial response of an RPC call.

On the link I show, they document the supported values for metadata

Can be useful for: Authentication & tracing

And many more features

Health checking (Service-specific health checking)
Interceptors (Middleware for RPCs)
Reflection (Service discoverability & ease debugging)
RPC automatic & manual cancellations
Call retries
Flow control for streaming
Load balancing (Client requests can be load balanced between multiple servers)

note:

It is important to explain that these features might differ from language to language, since it depends completely on how each of them implements gRPC

Flow control is a mechanism to ensure that a receiver of messages does not get overwhelmed by a fast sender. Flow control prevents data loss, improves performance and increases reliability.
Reflection: Explain that we won't go in detail about reflection but that I believe we should research more about it since it can be useful for better developer experience
Health check: gRPC specifies a standard service API (health/v1) for performing health check calls against gRPC servers. An implementation of this service is provided, but you are responsible for updating the health status of your services. It is pluggable, and some languages might not provide it.

Protocol buffers

Protocol Buffers are language-neutral, platform-neutral extensible mechanisms for serializing structured data.

https://protobuf.dev/

note:

Explain that it is the default binary serialization format supported by gRPC

It is also developed by google.

They are a combination of

The Interface Definition Language
The compiler that generates code from IDL files
Language-specific runtimes
The serialization format

note:

Here we will focus on the IDL and the tooling, we won't focus on the serialization format.

Remarkable features of Protocol buffers

Strongly typed data
Language and platform neutral
Compact binary format
Support for RPC service definition
Backward and Forward compatibility

note:

Give a short example of why it is backward and forward compatible. Mention tags.

Defining messages

syntax = "proto3";

package decline_renewal.request.v1;

import "google/protobuf/timestamp.proto";

message DeclineRenewalRequest {
  string policy_id = 1;
  google.protobuf.Timestamp requested_at = 2;
  optional string description = 3;
  oneof reason {
    CustomerDeclineRenewalReason customer = 4;
  }
}

enum CustomerDeclineRenewalReason {
  CUSTOMER_DECLINE_RENEWAL_REASON_UNSPECIFIED = 0;
  CUSTOMER_DECLINE_RENEWAL_REASON_COMPETITOR_OFFER = 1;
  CUSTOMER_DECLINE_RENEWAL_REASON_VEHICLE_SOLD = 2;
  CUSTOMER_DECLINE_RENEWAL_REASON_VEHICLE_NOT_PURCHASED = 3;
  CUSTOMER_DECLINE_RENEWAL_REASON_VEHICLE_DEREGISTRATION = 4;
  CUSTOMER_DECLINE_RENEWAL_REASON_NO_INSURANCE_WANTED = 5;
  CUSTOMER_DECLINE_RENEWAL_REASON_DOES_NOT_KNOW = 6;
  CUSTOMER_DECLINE_RENEWAL_REASON_WANTS_GREEN_CARD = 7;
  CUSTOMER_DECLINE_RENEWAL_REASON_INCORRECT_EFFECTIVE_DATE = 8;
  CUSTOMER_DECLINE_RENEWAL_REASON_INCORRECT_PERSONAL_DATA = 9;
  CUSTOMER_DECLINE_RENEWAL_REASON_INCORRECT_DATA_OTHER = 10;
}

Defining messages

syntax = "proto3";

package decline_renewal.response.v1;

message DeclineRenewalResponse {
  string policy_id = 1;
}

Defining a service

syntax = "proto3";

package service.v1;

import "es_policy_grpc/messages/amend_termination/request/v1/request.proto";
import "es_policy_grpc/messages/amend_termination/response/v1/response.proto";
// Skipping other imports for the sake of the slide

service PolicyManagementService {
  rpc AmendTermination(amend_termination.request.v1.AmendTerminationRequest)
    returns (amend_termination.response.v1.AmendTerminationResponse);

  rpc TerminatePolicy(terminate_policy.request.v1.TerminatePolicyRequest)
    returns (terminate_policy.response.v1.TerminatePolicyResponse);

  rpc WithdrawPolicy(withdraw_policy.request.v1.WithdrawPolicyRequest)
    returns (withdraw_policy.response.v1.WithdrawPolicyResponse);

  rpc DeclineRenewal(decline_renewal.request.v1.DeclineRenewalRequest)
    returns (decline_renewal.response.v1.DeclineRenewalResponse);
}

The protoc compiler

Compiles .proto files into code. Supports plugins for different languages.

protoc --proto_path=src --python_out=build/gen src/foo.proto

note:

--proto_path specifies the source directory, --*_out the destination directory, and the rest is the path to your .proto

Buf CLI

A linter for proto files
A formatter for proto files
A system to organize your proto files by workspaces
A feature to check for breaking changes in your definitions
A plugin system to compile proto files into multiple formats
Editor integration
And more!

https://buf.build/product/cli

note:

Explain that it builds on top of protoc. Be very short here, just mention the tool briefly. It is important because we use it.

gRPC in the Rust ecosystem

❤️

Tonic

A gRPC over HTTP/2 rust implementation focused on high performance, interoperability, and flexibility

https://github.com/hyperium/tonic

note:

It has first class support for async/await.

The main goal of tonic is to provide a generic gRPC implementation over HTTP/2 framing.

Codegen tools need to be used to generate the client and server stubs that will encode and decode the binary data and deal with other gRPC features such as streaming.

Features

Health check of services
Interceptors
Reflection
Code generation from proto definitions
RPC cancellation via timeouts
Bidirectional streaming
Load balancing
Request/Response compression
TLS
Extensible via Tower services

note:

These are only a few notable features, it provides more for sure

Generating code from Proto definitions ⚙️

// build.rs
    let mut prost_build = prost_build::Config::new();
    prost_build.protoc_arg("--experimental_allow_proto3_optional");
    prost_build.compile_protos(
        &[
            "proto/es_policy_grpc/messages/terminate_policy/request/v1/request.proto",
            "proto/es_policy_grpc/messages/terminate_policy/response/v1/response.proto",
            "proto/es_policy_grpc/messages/withdraw_policy/request/v1/request.proto",
            "proto/es_policy_grpc/messages/withdraw_policy/response/v1/response.proto",
            "proto/es_policy_grpc/messages/decline_renewal/request/v1/request.proto",
            "proto/es_policy_grpc/messages/decline_renewal/response/v1/response.proto",
            "proto/es_policy_grpc/messages/amend_termination/request/v1/request.proto",
            "proto/es_policy_grpc/messages/amend_termination/response/v1/response.proto",
        ],
        &["proto"],
    )?;

    tonic_build::configure()
        .protoc_arg("--experimental_allow_proto3_optional")
        .compile_protos(
            &["proto/es_policy_grpc/service/v1/service.proto"],
            &["proto"],
        )
        .unwrap();
    Ok(())

note:

First we need to talk about how do we generate code from our protobuf definitions.

Expose the generated code as a library

// lib.rs

pub mod messages {
    pub mod decline_renewal {
        pub mod request {
            pub mod v1 {
                include!(concat!(env!("OUT_DIR"), "/es_policy_grpc.messages.decline_renewal.request.v1.rs"));
            }
        }

        pub mod response {
            pub mod v1 {
                include!(concat!(env!("OUT_DIR"), "/es_policy_grpc.messages.decline_renewal.response.v1.rs"));
            }
        }
    }
    // ..
}

pub mod policy_service {
    pub mod v1 {
        include!(concat!(env!("OUT_DIR"), "/es_policy_grpc.service.v1.rs"));
    }
}

note:

We need to expose the generated code through our lib.rs

Filling the gaps

pub trait PolicyManagementService {
    async fn decline_renewal(
        &self,
        request: Request<DeclineRenewalRequest>,
    ) -> Result<Response<DeclineRenewalResponse>, Status>
	// ...
}

note:

We get a trait generated from the Protobuf Service definition

Filling the gaps

use es_policy_grpc::policy_service::v1::PolicyManagementService;
use es_policy_grpc::messages::decline_renewal::request::v1::DeclineRenewalyRequest;
use es_policy_grpc::messages::decline_renewal::response::v1::DeclineRenewalResponse;
use tonic::{Request, Response, Status};

pub struct PolicyManagementServiceImpl {
    application: Arc<dyn ApplicationServices>,
}

impl PolicyManagementService for PolicyManagementServiceImpl {
    async fn decline_renewal(
        &self,
        request: Request<DeclineRenewalRequest>,
    ) -> Result<Response<DeclineRenewalResponse>, Status> {
        let request = request.into_inner();

        let policy_id = Uuid::parse_str(&request.policy_id).unwrap();

        let policy = self.application.find_policy(policy_id).await.unwrap();

        let details: TerminateDetails = request.try_to_domain(policy.expiration_date()).unwrap()

        self.application.cancel_policy(policy_id.into(), details).await;

        Ok(Response::new(DeclineRenewalResponse {
            policy_id: policy_id.to_string(),
        }))
    }
    // ..
}

Building the server

use tonic::Server as GrpcServer;
use es_policy_grpc::policy_service::v1::PolicyManagementServiceServer as PolicyManagementServerStub;

let server =
	// gRPC server provided by Tonic
	GrpcServer::builder()
		.add_service(
			// Generated Policy Management Server Stub
			PolicyManagementServerStub::new(
				// Implementation of the service
				PolicyManagementServiceImpl::new(application)
			)
	);

let listener = TcpListener::bind(("0.0.0.0", grpc_port)).await?;

server.serve(listener).await?;

note:

Simple build of a Tonic Server. We will dive into how to add middleware later.

Highlight the fact that at the end of the day the gRPC server will be listening to a TCP port like any other HTTP2 server.

Building the client

use es_policy_grpc::policy_service::v1::PolicyManagementServiceClient as PolicyManagementClientStub;
use tonic::{metadata::MetadataValue, Request};
use es_policy_grpc::messages::decline_renewal::request::v1::{
    DeclineRenewalRequest,
    DeclineRenewalReason,
    CustomerDeclineRenewalReason
};

// Auto-generated client stub
let mut client = PolicyManagementClientStub::connect("http://localhost:50051").await?;

let mut request = Request::new(DeclineRenewalRequest {
    policy_id: uuid::Uuid::new_v4(),
    requested_at: DateTime::now(),
    description: Some("dummy".into()),
    reason: DeclineRenewalReason::Customer(
        CustomerDeclineRenewalReason::VehicleSold
    )
});

let token: MetadataValue<_> = "Bearer some-auth-token".parse()?;

request.metadata_mut.insert(http::AUTHORIZATION, token);

let _response = client.generate_contract(request).await?;

note:

What if we wanted to add those headers for every request? Now we talk about interceptors

Interceptors

Interceptors are similar to middleware but with less flexibility. They allow you to:

Add/remove/check items in the metadata of each request.
Cancel a request with a Status.

Interceptors in practice

use es_policy_grpc::policy_service::v1::PolicyManagementServiceServer as PolicyManagementServerStub;
use tonic::{metadata::MetadataValue, Request, Response, Status};

fn check_auth(req: Request<()>) -> Result<Request<()>, Status> {
    match req.metadata().get(http::AUTHORIZATION) {
        Some(t) if is_valid(t) => Ok(req),
        _ => Err(Status::unauthenticated("No valid auth token")),
    }
}

let svc = PolicyManagementServerStub::with_interceptor(
	PolicyManagementServiceImpl::new(application),
	check_auth
);

Health checking gRPC services

Tonic provides a health check service implementing a standard gRPC health checking protocol.

https://github.com/grpc/grpc/blob/master/doc/health-checking.md

note:

A GRPC service is used as the health checking mechanism.

Since it is a GRPC service itself, doing a health check is in the same format as a normal rpc.

It has rich semantics such as per-service health status.

The server has full control over the access of the health checking service.

Health service definition

syntax = "proto3";

package grpc.health.v1;

message HealthCheckRequest {
  string service = 1;
}

message HealthCheckResponse {
  enum ServingStatus {
    UNKNOWN = 0;
    SERVING = 1;
    NOT_SERVING = 2;
    SERVICE_UNKNOWN = 3; // Used only by the Watch method.
  }
  ServingStatus status = 1;
}

service Health {
  rpc Check(HealthCheckRequest) returns (HealthCheckResponse);
  rpc Watch(HealthCheckRequest) returns (stream HealthCheckResponse);
}

This definition is provided by the official gRPC docs, each language runtime might implement it or not.

https://github.com/grpc/grpc/blob/master/doc/health-checking.md

Enabling the health service

use es_policy_grpc::policy_service::v1::PolicyManagementServiceServer as PolicyManagementServerStub;
use tonic_health::server::health_reporter;
use tonic::Server as GrpcServer;

let (health_reporter, health_service) = health_reporter();

health_reporter
    .set_serving::<PolicyManagementServerStub<PolicyManagementServiceImpl>>()
    .await;

GrpcServer::builder()
	// Add other layers
	.layer(..)
	.add_service(health_service)
	.serve(addr)
	.await?;

note:

Make it clear that we are using the tonic-health crate which doesn't come by default with tonic.

What about more complex middleware? What if we need to also intercept responses?

Let's dive into Tower

Tower

note:

Tower is a library of modular and reusable components for building robust networking clients and servers.

Tonic is built on top of Tower

It's core abstraction is the Service, which we see in the next slide.

It exposes already a set of basic reusable services to solve common networking patterns such as timeouts and rate limiting.

Tower service

pub trait Service<Request> {
    type Response;
    type Error;
    type Future: Future<Output = Result<Self::Response, Self::Error>>;

    fn poll_ready(&mut self, cx: &mut Context<'_>) -> Poll<Result<(), Self::Error>>;

    fn call(&mut self, req: Request) -> Self::Future;
}

note:

Tower’s fundamental abstraction.

An asynchronous function from a Request to a Response.

The Service trait is a simplified interface making it easy to write network applications in a modular and reusable way, decoupled from the underlying protocol.

It immediately returns a Future representing the eventual completion of processing the request.

The processing may depend on calling other services. At some point in the future, the processing will complete, and the Future will resolve to a response or error.

Layers

pub trait Layer<S> {
    type Service;

    fn layer(&self, inner: S) -> Self::Service;
}

note:

Mechanism to layer services. It allows us to wrap a generic service with another one. It can be used to wrap a reusable service which is meant to act as a middleware around another service.

Building a layered service

ServiceBuilder::new()
    .timeout(Duration::from_secs(10))
    .layer(OpenTelemetryServerTracingLayer::new_for_grpc())
    .layer(JwtAuthLayer::new(jwks_client, "starsky"))
    .named_layer(StarskyServer::new(starsky_service));

note:

A real example of a layered service from Starsky. Slightly simplified for the sake of the presentation. The flow will be the following: Timeout -> SSRHL -> Tracing -> SSRHL -> Auth -> Starsky service

Building a layered service

Authorization middleware

Auth0 M2M authorization

Authentication service

// Tower Service used as a JWT Auth middleware.
pub struct JwtAuth<T: JwtDecoder, S> {
    jwt_decoder: Arc<T>,
    audience: String,
    inner: S,
}

note:

First we build a struct that will contain a generic inner service protected by our auth service.

The audience represents the audience set in Auth0, which is our API identifier.

The JwksClient contains the public keys to verify the signature of incoming tokens.

Authentication service

impl<T: JwtDecoder, S> JwtAuth<T, S> {
    async fn authorize<Req, Res>(&self, req: http::Request<Req>) -> Result<http::Request<Req>, http::Response<Res>>
    where
        Res: Default,
    {
        let token = req.headers()
            .get(http::AUTHORIZATION)
            .ok_or_else(make_unauthorized_response)?
            .strip_prefix("Bearer ")
            .ok_or_else(make_unauthorized_response)?

        if let Err(_err) = self.jwt_decoder.decode::<serde_json::Value>(token, &self.audience).await {
            return Err(make_unauthorized_response());
        }

        Ok(req)
    }
}

note:

Here we implement the authentication logic, we are not implementing yet the service trait.

I've simplified the code for the sake of the slide.

We assume that make_unauthorized_response will build a gRPC unauthorized response.

Authentication service

use std::task::{Context, Poll};
use http::{Request, Response};

impl<Req, Res, S, T> Service<Request<Req>> for JwtAuth<T, S>
where
    S: Service<Request<Req>, Response = Response<Res>>,
    T: JwtDecoder,
    // .. Skipping other constraints
{
    type Response = S::Response;
    type Error = S::Error;
    type Future = BoxFuture<'static, Result<Self::Response, Self::Error>>;

    fn poll_ready(&mut self, cx: &mut Context<'_>) -> Poll<Result<(), Self::Error>> {
        self.inner.poll_ready(cx)
    }

    fn call(&mut self, req: Request<Req>) -> Self::Future {
        let mut this = self.clone();

        async move {
            match this.authorize(req).await {
                Ok(req) => this.inner.call(req).await,
                Err(res) => Ok(res),
            }
        }
        .boxed()
    }
}

note:

Note the use of async move inside call given that call is not defined as an async function on the trait definition

Authentication layer

// Reusable Tower Layer meant to wrap
// a JWT Auth middleware Service around a generic service
pub struct JwtAuthLayer<T: JwtDecoder> {
    jwt_decoder: Arc<T>,
    audience: String,
}

impl<T: JwtDecoder> JwtAuthLayer<T> {
    pub fn new(jwt_decoder: T, audience: impl Into<String>) -> Self {
        Self {
            jwt_decoder: Arc::new(jwt_decoder),
            audience: audience.into(),
        }
    }
}

note:

Although confusing, the purpose of the layer is to make the usage of the middleware more user-friendly

Authentication layer

impl<T, S> Layer<S> for JwtAuthLayer<T>
where
    T: JwtDecoder,
{
    type Service = JwtAuth<T, S>;

    fn layer(&self, inner: S) -> Self::Service {
        JwtAuth {
            jwt_decoder: self.jwt_decoder.clone(),
            audience: self.audience.clone(),
            inner,
        }
    }
}

note:

What is done inside of the layer function could just be done manually, but it is done here for better user experience later.

Attaching it to our gRPC server

use es_policy_grpc::policy_service::v1::PolicyManagementServiceServer as PolicyManagementServerStub;
use tonic::Server as GrpcServer;
use tower::ServiceBuilder;

// ...

let authenticated_apis = ServiceBuilder::new()
    .layer(JwtAuthLayer::new(jwks_client, AUDIENCE))
    .service(PolicyManagementServerStub::new(
        PolicyManagementServiceImpl::new(application),
    ));

let server = GrpcServer::builder().add_service(authenticated_apis);

note:

Simplified version of our real server implementation in es-be

Tracing Layer

Let's build another Tower service.

Interceptors are not the best fit, we want to trace responses too.

Building a span from a request

fn make_span<B>(request: &http::Request<B>) -> tracing::Span {
    // We'll assume server_info() works
    let ServerInfo { host, port, .. } = server_info(request);

    let mut headers = request.headers();

    let name = request.uri().path().trim_start_matches('/');

    let (service, method) = name
        .split_once('/')
        .expect("gRPC paths should be formatted as $service/$method");

    tracing::info_span!(
        "gRPC request",
        otel.name = %name,
        rpc.grpc.request.metadata = ?headers,
        rpc.method = method,
        rpc.service = service,
        rpc.system = "grpc",
        server.address = %host,
        server.port = port,
        span.kind = "server",
        // set by the response span
        otel.status_code = tracing::field::Empty,
        rpc.grpc.response.metadata = tracing::field::Empty,
        rpc.grpc.status_code = tracing::field::Empty,
    )
}

note:

Explain how this is a simplified version of the real implementation in prima_tower

Updating the span with the response

fn on_response<B>(response: &http::Response<B>, span: &tracing::Span) {
    let mut headers = response.headers().clone();
    redact_sensitive_headers(&mut headers);

    let code = tonic::Status::from_header_map(&headers)
        .map(|status| status.code())
        .unwrap_or(tonic::Code::Ok);

    span.record("rpc.grpc.status_code", code as i32);
    span.record("grpc.response.header", format!("{:?}", headers));

    if matches!(
        code,
        tonic::Code::Unknown
            | tonic::Code::DeadlineExceeded
            | tonic::Code::Unimplemented
            | tonic::Code::Internal
            | tonic::Code::Unavailable
            | tonic::Code::DataLoss
    ) {
        span.record("otel.status_code", "ERROR");
    }
}

note:

We will see in a second how the span we receive by parameters is the same span we created when handling the request

Tracing service

// Tower Service acting as a Tracing middleware
// for gRPC requests and responses
pub struct OpenTelemetryTracer<S> {
    inner: S,
}

note:

We need to implement the service that will act as the tracing middleware

Tracing service

use std::task::{Context, Poll};
use http::{Request, Response};
use opentelemetry_http::HeaderExtractor;
use opentelemetry_sdk::propagation::TraceContextPropagator;

impl<Req, Res, S> Service<Request<Req>> for OpenTelemetryTracer<S>
where
    S: Service<Request<Req>, Response = Response<Res>>,
    S::Future: Send + 'static,
{
    type Response = S::Response;
    type Error = S::Error;
    type Future = BoxFuture<'static, Result<Self::Response, Self::Error>>;

    fn poll_ready(&mut self, cx: &mut Context<'_>) -> Poll<Result<(), Self::Error>> {
        self.inner.poll_ready(cx)
    }

    fn call(&mut self, req: Request<Req>) -> Self::Future {
        let parent_context = TraceContextPropagator::new().extract(&HeaderExtractor(req.headers()));

        let span = make_span(&req);
        span.set_parent(parent_context);

        self.inner.call(req).instrument(span.clone()).inspect_ok(move |response| {
            on_response(response, &span);
        })
        .boxed()
    }
}

note:

Again, the code is simplified for the slides purpose.

Note how the same span is used to track the request and response.

Then that span is used as the parent span for the inner service call.

Tracing layer

pub struct OpenTelemetryTracingLayer {}

impl OpenTelemetryTracingLayer {
    pub fn new() -> Self {
        Self {}
    }
}

note:

As we've mentioned, layers exist for better development experience, services could be layered manually.

In this case we don't need any data to be added to the layer.

Tracing layer

impl<S> Layer<S> for OpenTelemetryTracingLayer {
    type Service = OpenTelemetryTracer<S>;

    fn layer(&self, inner: S) -> Self::Service {
        OpenTelemetryServerTracing { inner }
    }
}

Attaching it to our gRPC server

use tonic::Server as GrpcServer;

GrpcServer::builder()
    .layer(OpenTelemetryTracingLayer::new())
    // layer other services to benefit from tracing
    .serve(addr)
    .await?;

note:

It is this simple :)

Thank you for your time

❤️

29 KiB Raw Blame History Unescape Escape

Learning gRPC

First, what is RPC?

Interface Definition Language

Why a framework?

Built on top of HTTP2

4 types of RPC supported

Metadata

And many more features

Protocol buffers

They are a combination of

Remarkable features of Protocol buffers

Defining messages

Defining messages

Defining a service

The protoc compiler

Buf CLI

gRPC in the Rust ecosystem

Tonic

Features

Generating code from Proto definitions ⚙️

Expose the generated code as a library

Filling the gaps

Filling the gaps

Building the server

Building the client

Interceptors

Interceptors in practice

Health checking gRPC services

Health service definition

https://github.com/grpc/grpc/blob/master/doc/health-checking.md

Enabling the health service

Tower

Tower service

Layers

Building a layered service

Building a layered service

Authorization middleware

Authentication service

Authentication service

Authentication service

Authentication layer

Authentication layer

Attaching it to our gRPC server

Tracing Layer

Building a span from a request

Updating the span with the response

Tracing service

Tracing service

Tracing layer

Tracing layer

Attaching it to our gRPC server

Thank you for your time

29 KiB

Raw Blame History
